MVT-06 Medium Voltage Potential Transformer
MEDIUM VOLTAGE POTENTIAL TRANSFORMER

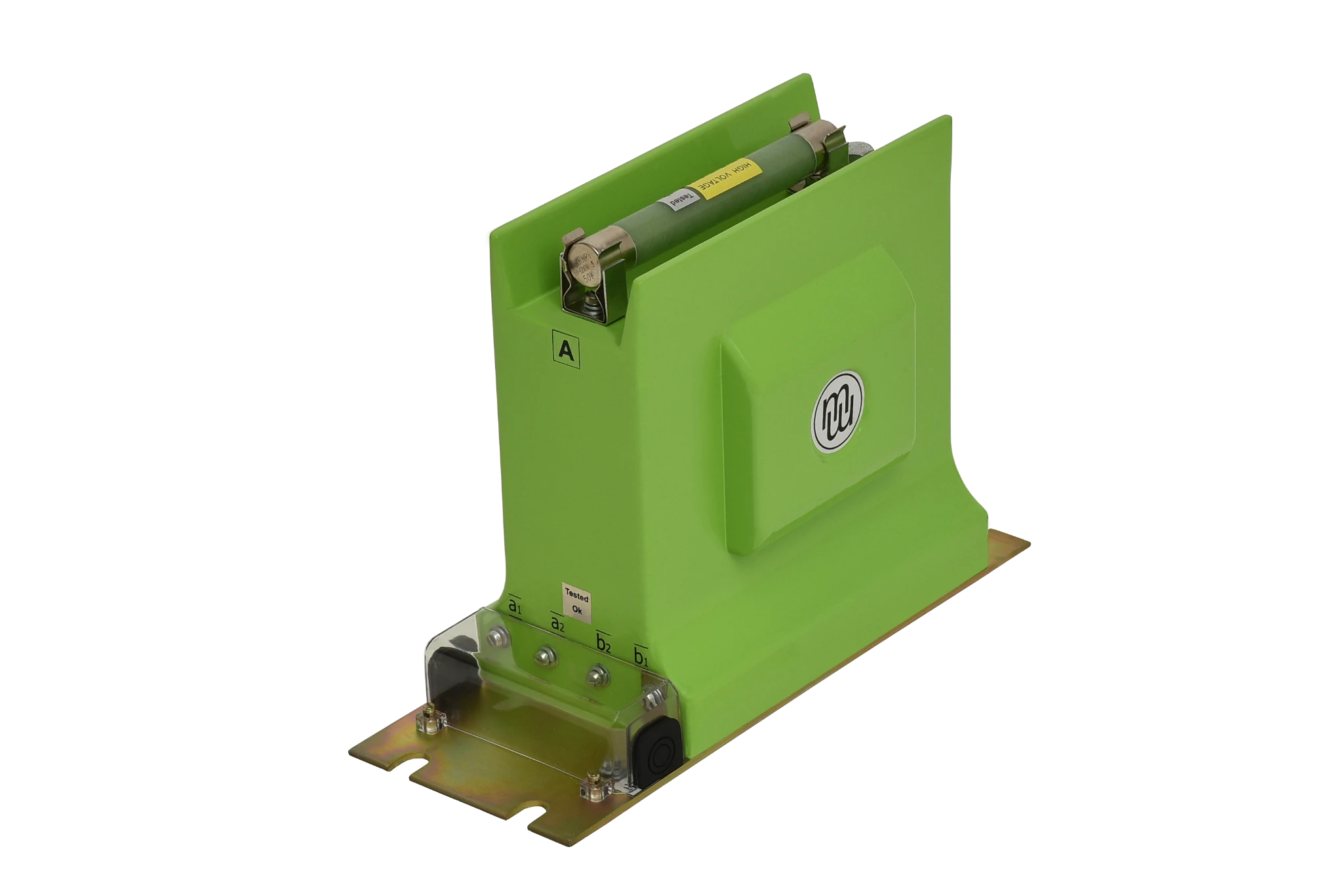

MVT-06 Potential Transformer
The MVT-06 Medium Voltage Potential Transformer by Metelx Technologies is designed for accurate voltage measurement in medium voltage electrical systems. Suitable for metering and monitoring applications, the MVT-06 supports dependable performance in electrical installations. Manufactured with a focus on quality and reliability, it is a practical solution for medium-voltage measurement requirements.

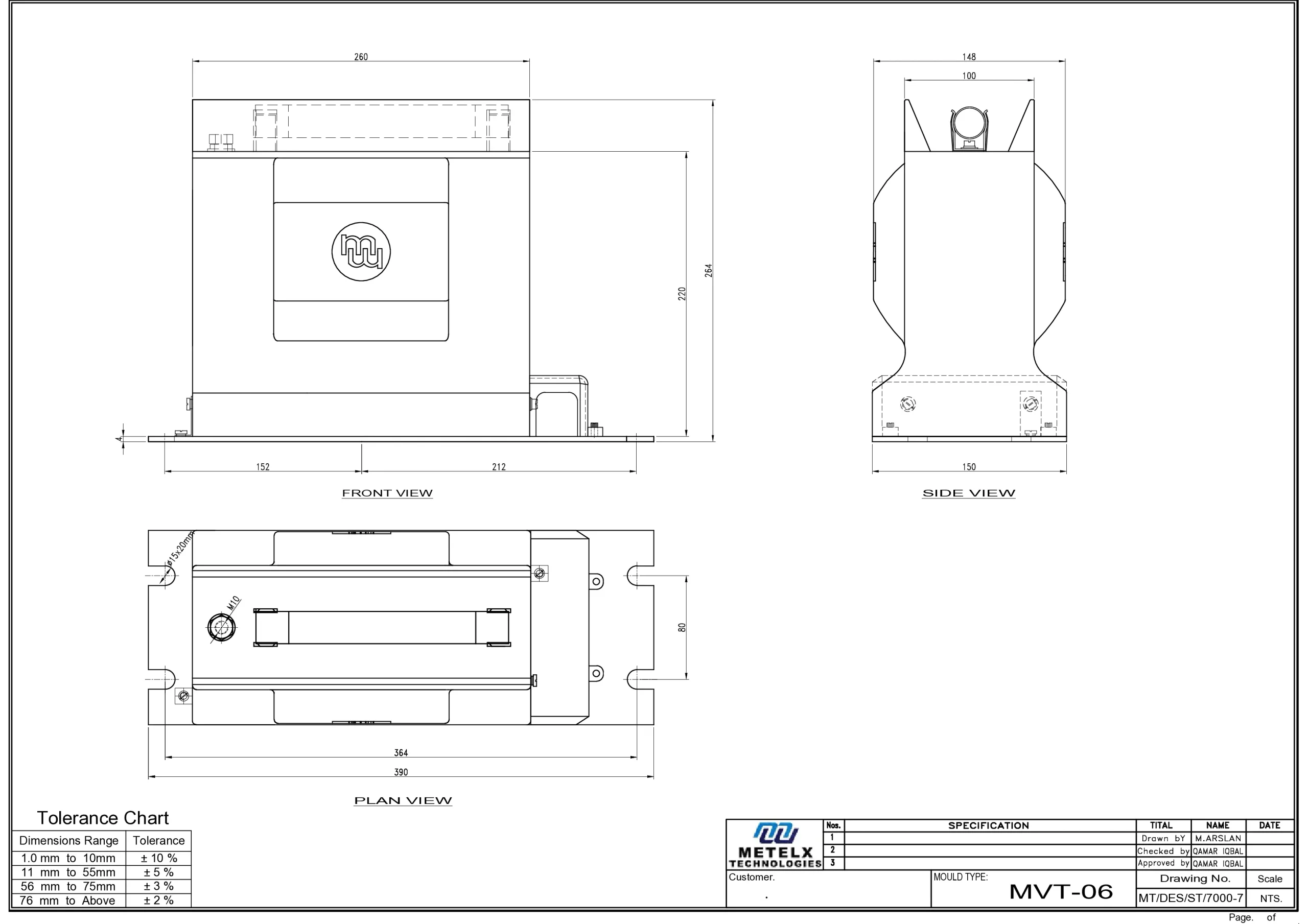

Technical Data & Diagram
|
Insulation Level |
Frequency |
WAPDA spec. |
International Spec. |
|---|---|---|---|
|
3.6/10/40 KV to 24/50/125 KV |
50/60 Hz |
P-44:2018 |
IEC – 61869 |
|
Ratio |
M Class |
P Class |
VA |
|---|---|---|---|
|
3.3KV/√3 / 100V/√3 to 24KV/√3 / 110V/√3 3.3KV/√3 / 100V/√3, 100V/3 to 24KV/√3 / 110V/√3, 110V/3 3.3KV/√3 / 100V/√3, 100V/3, 100/3 to 24KV/√3 / 110V/√3, 110V/√3, 110V/3 |
1.0 to 0.1 |
3P & 6P |
Up to 300 |
