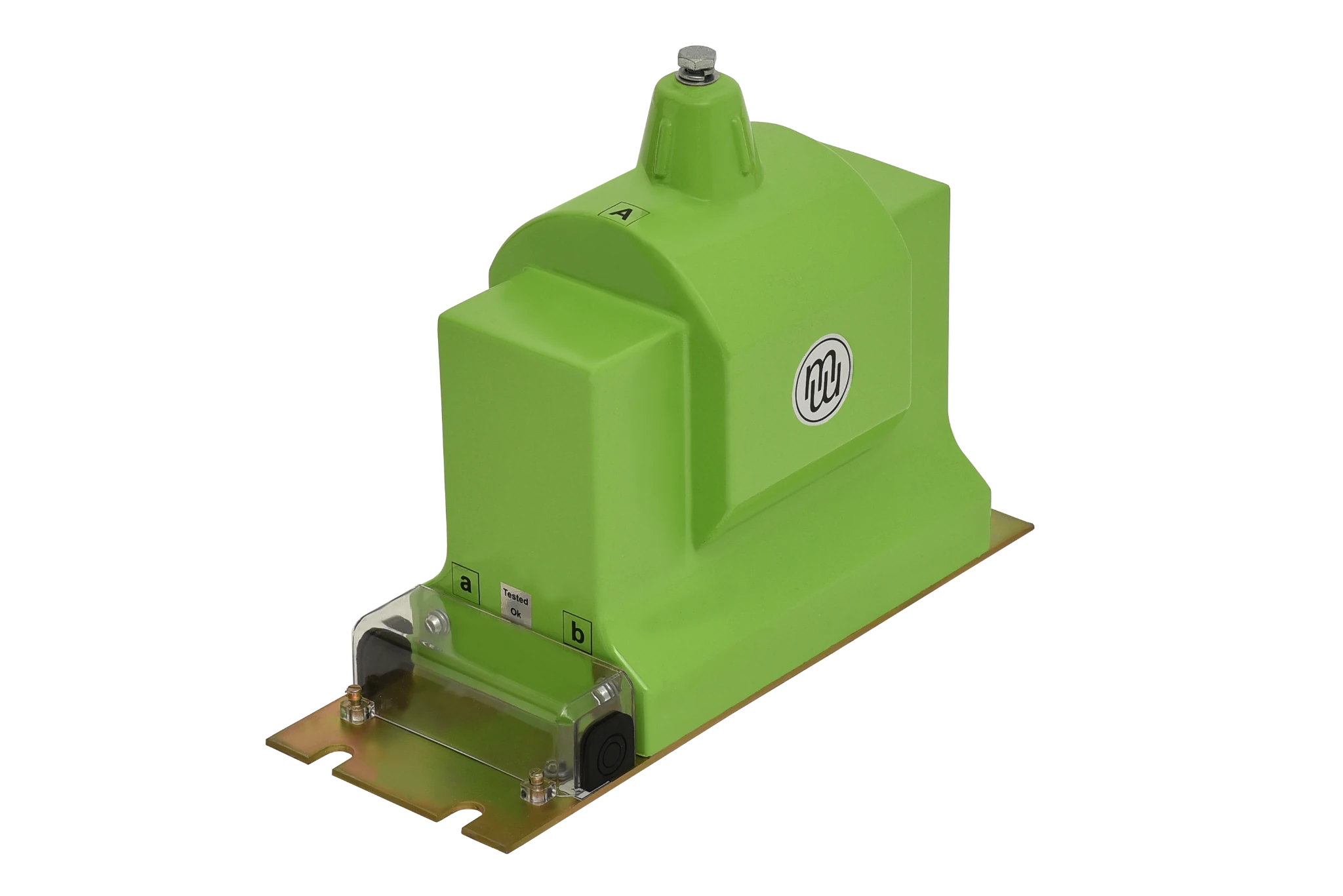

MVT-05 Medium Voltage Potential Transformer
MEDIUM VOLTAGE POTENTIAL TRANSFORMER
MVT-05 Potential Transformer
The MVT-05 Medium Voltage Potential Transformer by Metelx Technologies is designed to step down medium voltage to a lower, measurable level for accurate voltage measurement and metering applications. It provides a reliable solution for electrical power systems, supporting safe monitoring and dependable performance in medium voltage installations.

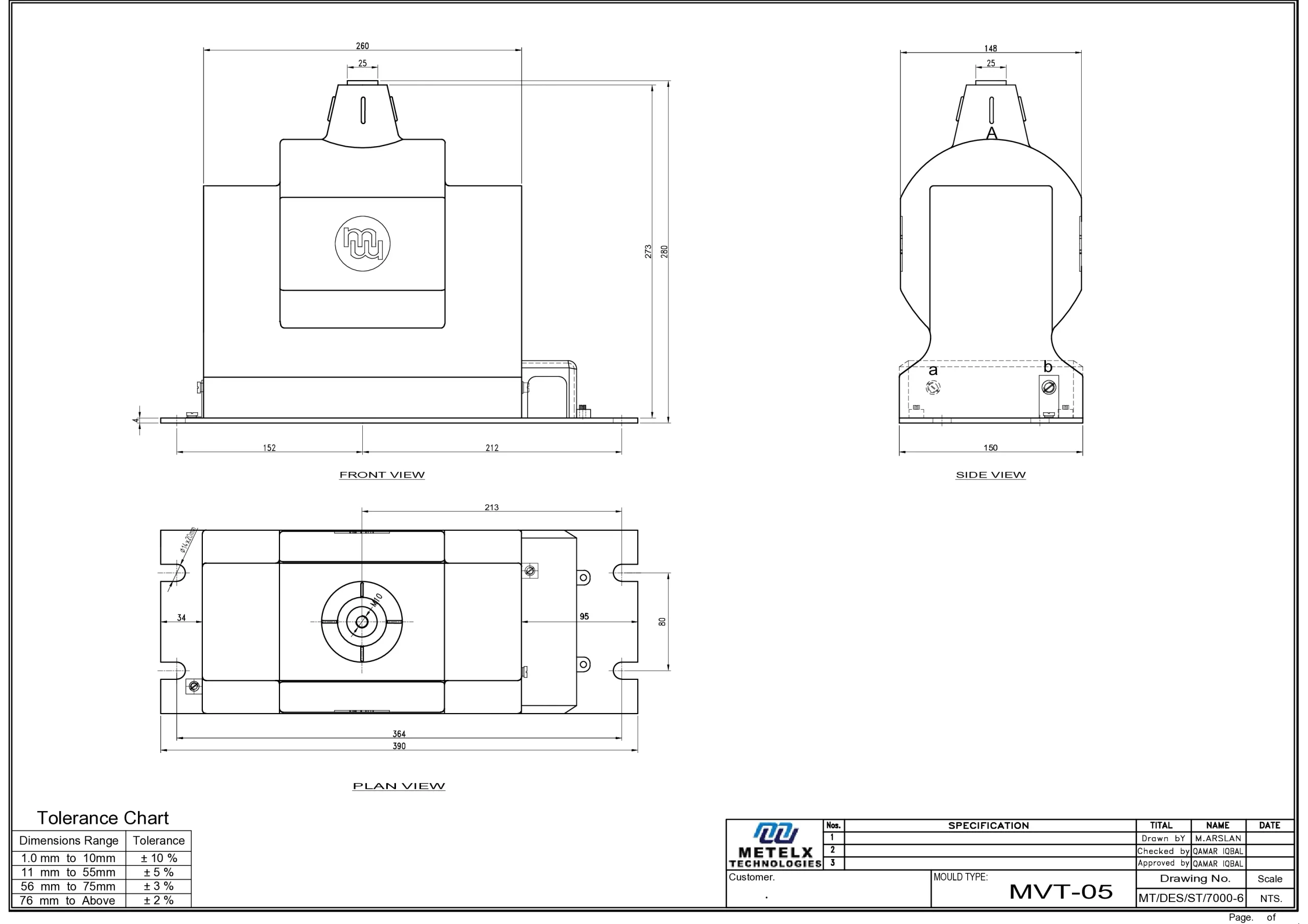

Technical Data & Diagram
|
Insulation Level |
Frequency |
WAPDA spec. |
International Spec. |
|---|---|---|---|
|
3.6/10/40 KV to 24/50/125 KV |
50/60 Hz |
P-44:2018 |
IEC – 61869 |
|
Ratio |
M Class |
P Class |
VA |
|---|---|---|---|
|
3.3KV/√3/100V/√3 to 24KV/√3/110V/√3 3.3KV/√3/100V/√3, 100V/3 to 24KV/√3/110V/√3, 110V/3 50:25/1A to 1000:500/5A 3.3KV/√3/100V/√3, 100V/3, 100/3 to 24KV/√3/110V/√3, 110V/3, 110V/3 |
1.0 to 0.1 |
3P & 6P |
Up to 300 |
