MCT-09 Medium Voltage Current Transformer
MEDIUM VOLTAGE CURRENT TRANSFORMER

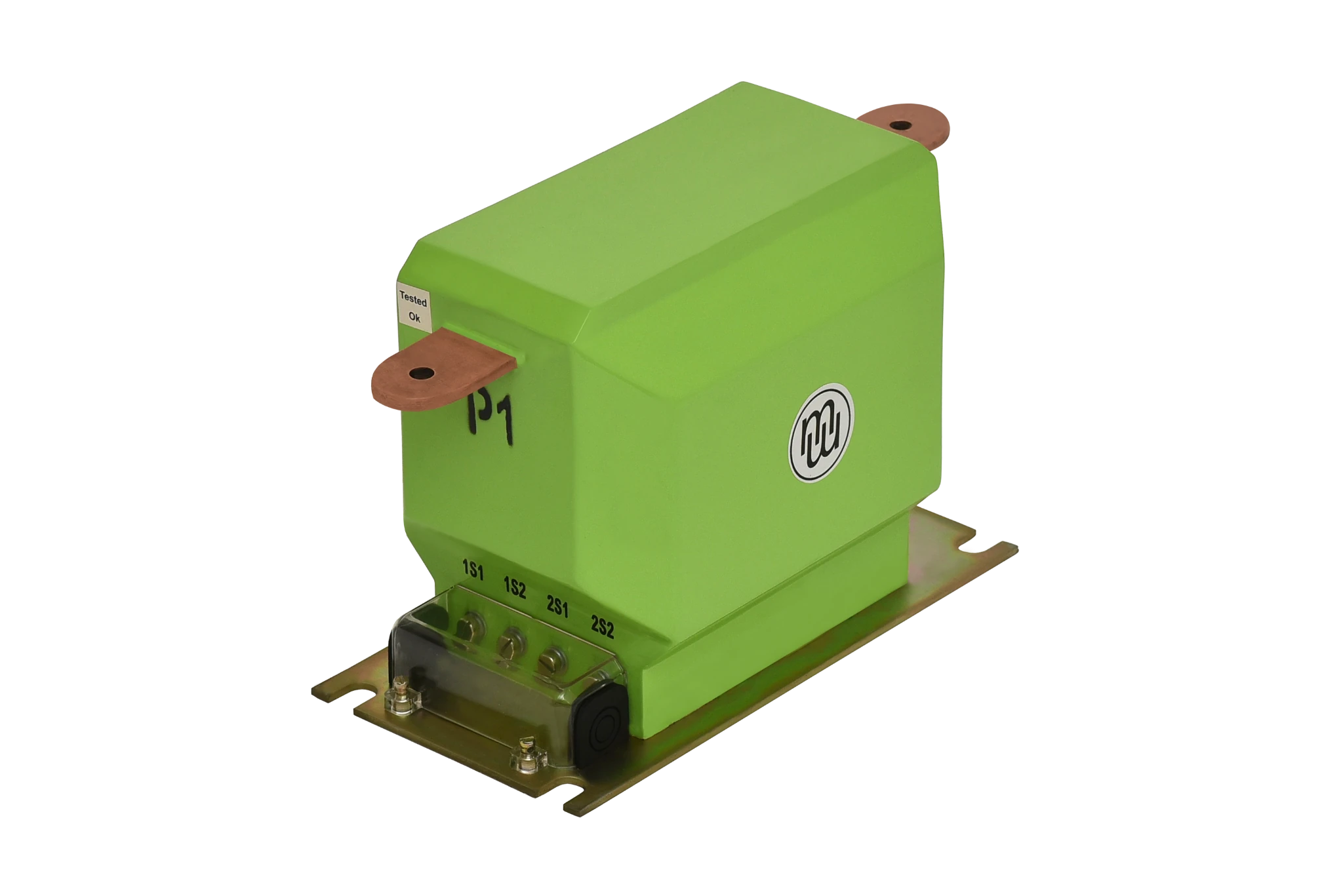

MCT-09 Current Transformer
The MCT-09 Medium Voltage Current Transformer by Metelx Technologies is designed for reliable current measurement and electrical protection applications in medium-voltage power systems. Manufactured with a focus on quality, performance, and dependable operation, MCT-09 is suitable for applications requiring accurate current transformation for metering and protection. Metelx offers medium-voltage current transformers up to 33 kV, with solutions for indoor and outdoor installations according to specific application requirements and applicable standards.

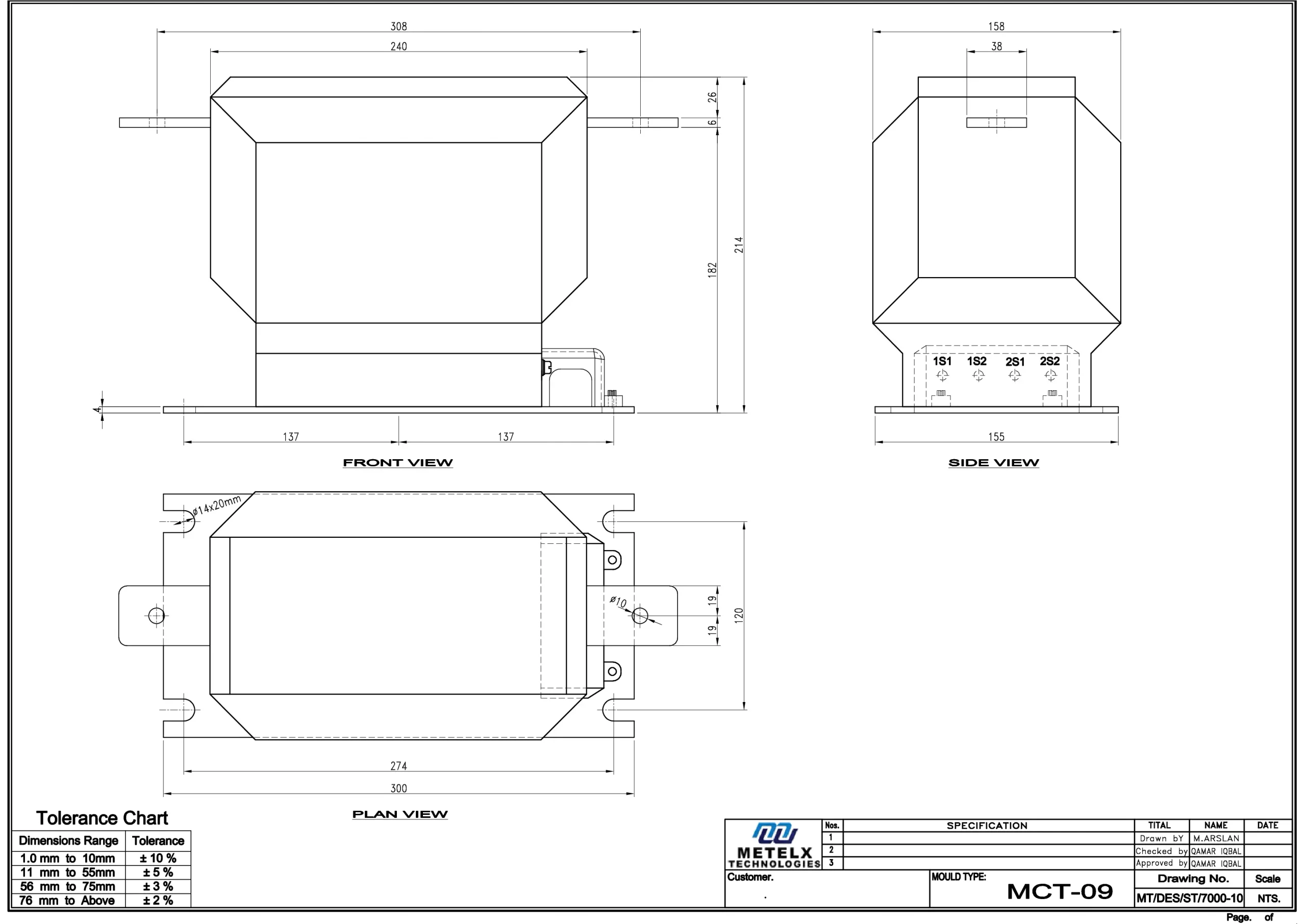

Technical Data & Diagram
|
Insulation Level |
Frequency |
WAPDA spec. |
International Spec. |
|---|---|---|---|
|
3.6/10/40 KV to 24/50/125 KV |
50/60 Hz |
P-44:2018 |
IEC – 61869 |
|
Ratio |
M Class |
P Class |
VA |
Iₜₕ KA |
|---|---|---|---|---|
|
25/1A to 600/5A 25/1/1A to 600/5/5A 50:25/1A to 600:300/5A |
0.1 M5 to 1.0 M10 |
5 P10 to 10 P10 |
Up-to 50 |
Up-to 40 |
