MCT-08 Medium Voltage Current Transformer
MEDIUM VOLTAGE CURRENT TRANSFORMER

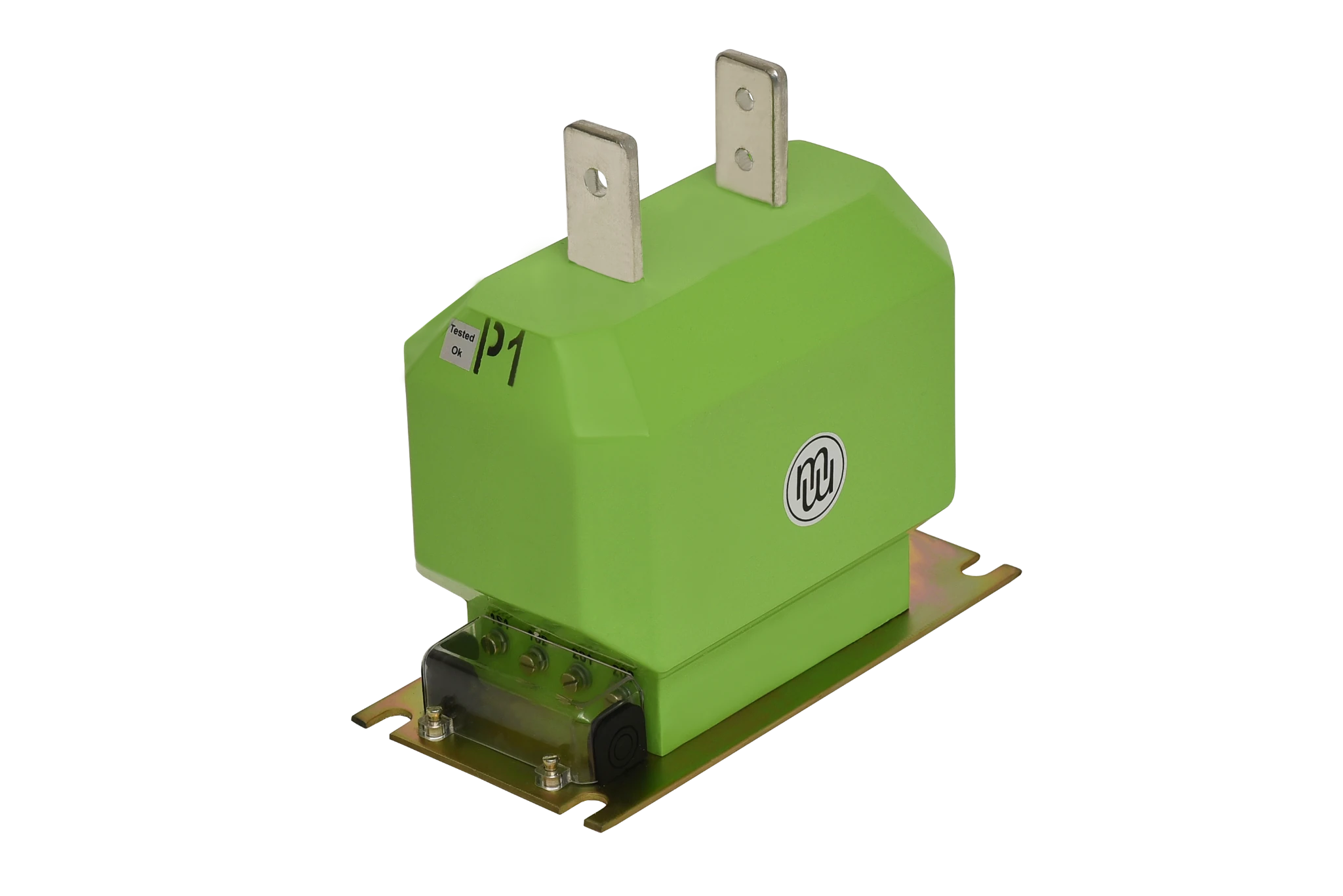

MCT-08 Current Transformer
The MCT-08 Medium Voltage Current Transformer by Metelx is designed for reliable current measurement and electrical protection applications in medium-voltage power systems. Manufactured with a focus on quality, performance, and dependable operation, MCT-08 supports metering and protection requirements in electrical installations. Metelx offers medium-voltage current transformer solutions for indoor and outdoor applications, with ratings and configurations tailored to project requirements. Contact Metelx Technologies to discuss technical specifications and suitability for your application.

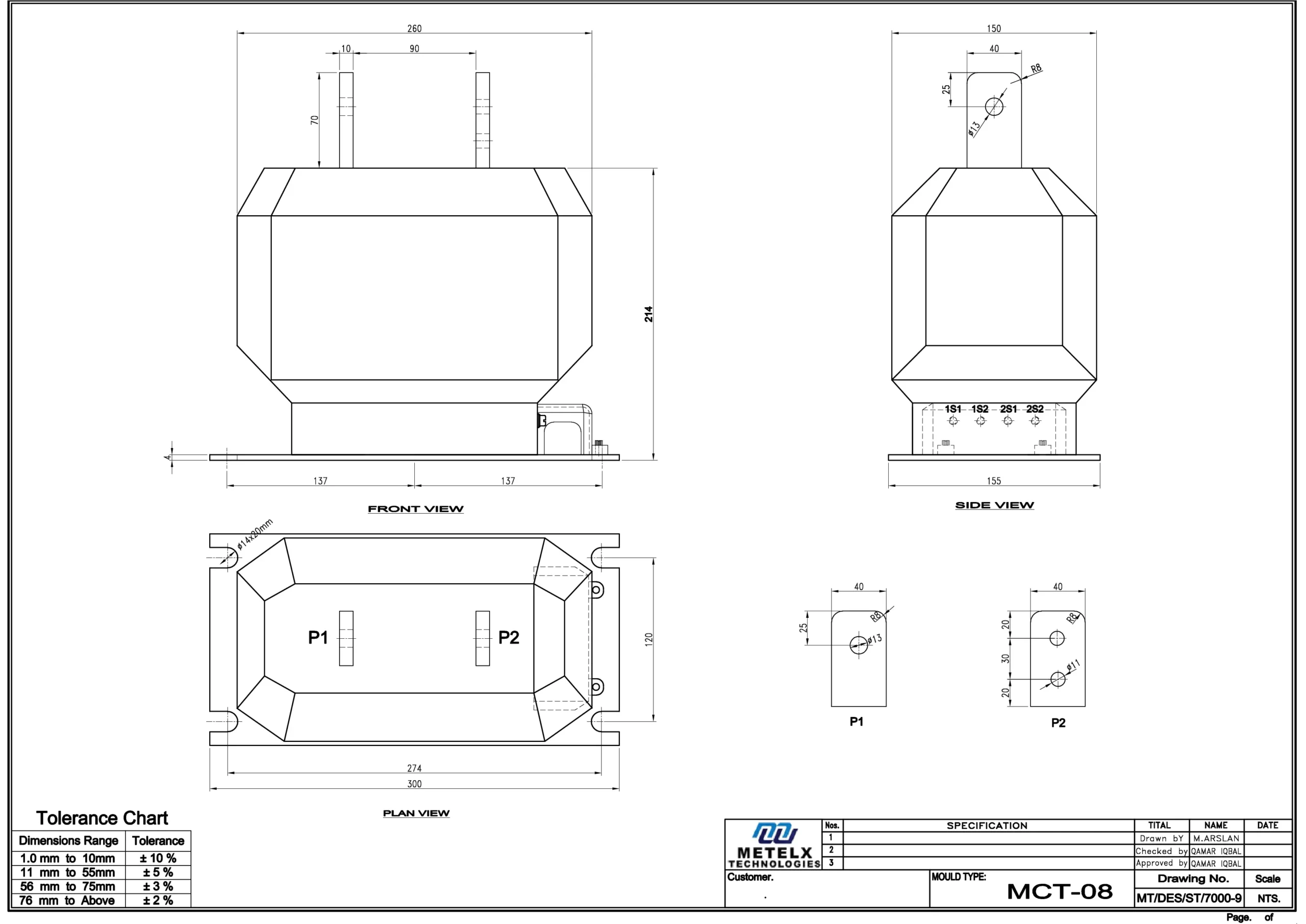

Technical Data & Diagram
|
Insulation Level |
Frequency |
WAPDA spec. |
International Spec. |
|---|---|---|---|
|
3.6/10/40 KV to 24/50/125 KV |
50/60 Hz |
P-44:2018 |
IEC – 61869 |
|
Ratio |
M Class |
P Class |
VA |
Iₜₕ KA |
|---|---|---|---|---|
|
25/1A to 1000/5A 25/1/1A to 1000/5/5A 25/1/1/1A to 1000/5/5/5A 50:25/1A to 1000:500/5A 50:25/1/1A to 1000:500/5/5A |
0.1 M5 to 1.0 M10 |
5 P10 to 10 P10 |
Up-to 80 |
Up-to 40 |
