MVT-15 Medium Voltage Potential Transformer
MEDIUM VOLTAGE POTENTIAL TRANSFORMER
MVT-15 Potential Transformer
The MVT-15 Medium Voltage Potential Transformer by Metelx Technologies is designed for voltage measurement and electrical monitoring applications in medium-voltage power systems. With a focus on quality, reliability, and consistent performance, MVT-15 supports voltage measurement requirements for suitable metering and protection applications. Metelx Technologies manufactures medium-voltage instrument transformers up to 33 kV, offering solutions tailored to specific application requirements and applicable standards.

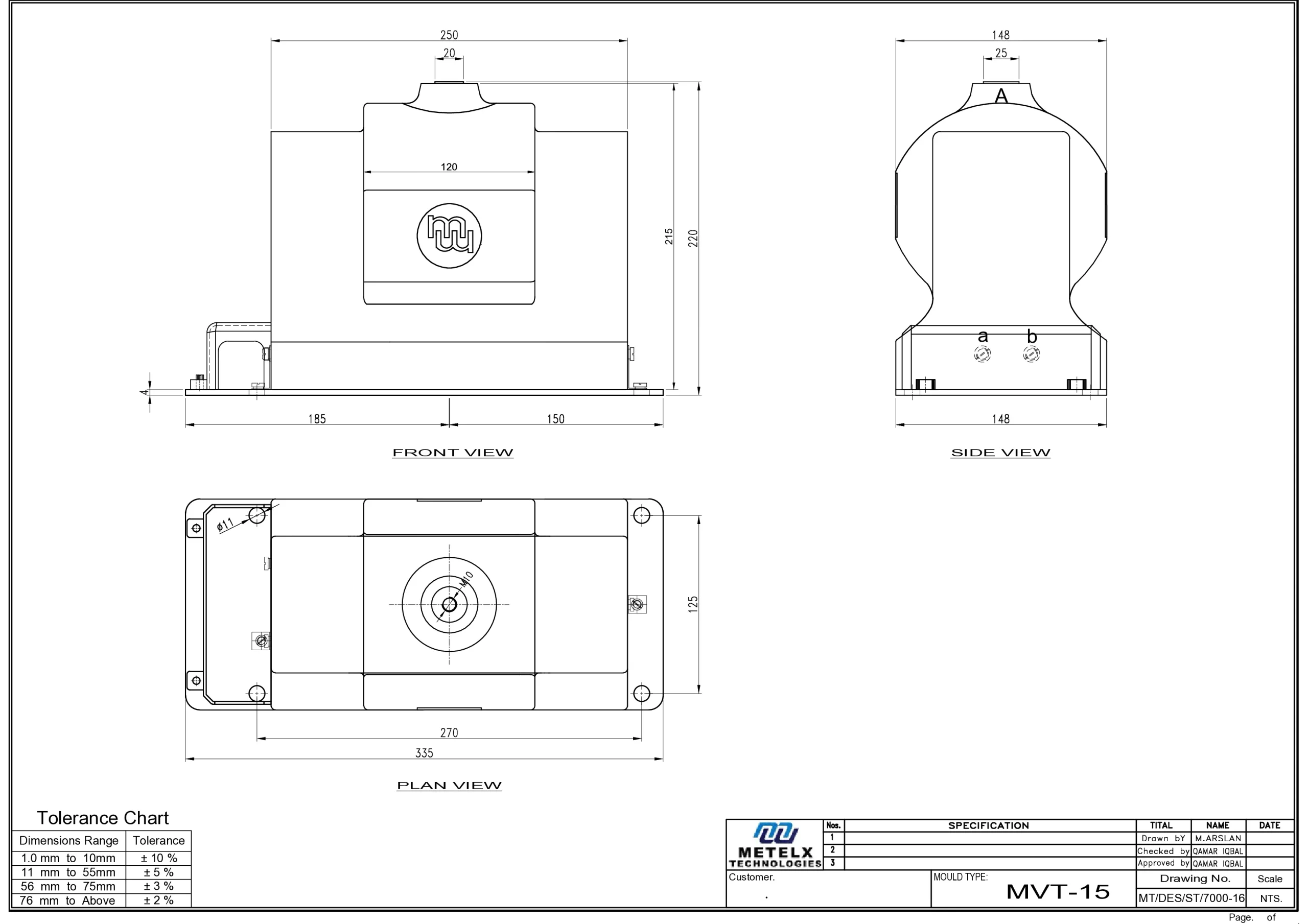

Technical Data & Diagram
|
Insulation Level |
Frequency |
WAPDA Spec. |
International Spec. |
|---|---|---|---|
|
3.6/10/40 KV to 24/50/125 KV |
50/60 Hz |
P-44: 2018 |
IEC – 61869 |
|
Ratio |
M Class |
P Class |
VA |
|---|---|---|---|
|
3.3KV/√3 / 100V/√3 to 24KV/√3 / 110V/√3 3.3KV/√3 / 100V/√3, 100V/3 to 24KV/√3 / 110V/√3, 110V/3 3.3KV/√3 / 100V/√3, 100V/√3, 100/3 to 24KV/√3 / 110V/√3, 110V/√3, 100V/3 |
1.0 to 0.1 |
3P & 6P |
Up to 200 |
