MEDIUM VOLTAGE CURRENT TRANSFORMER

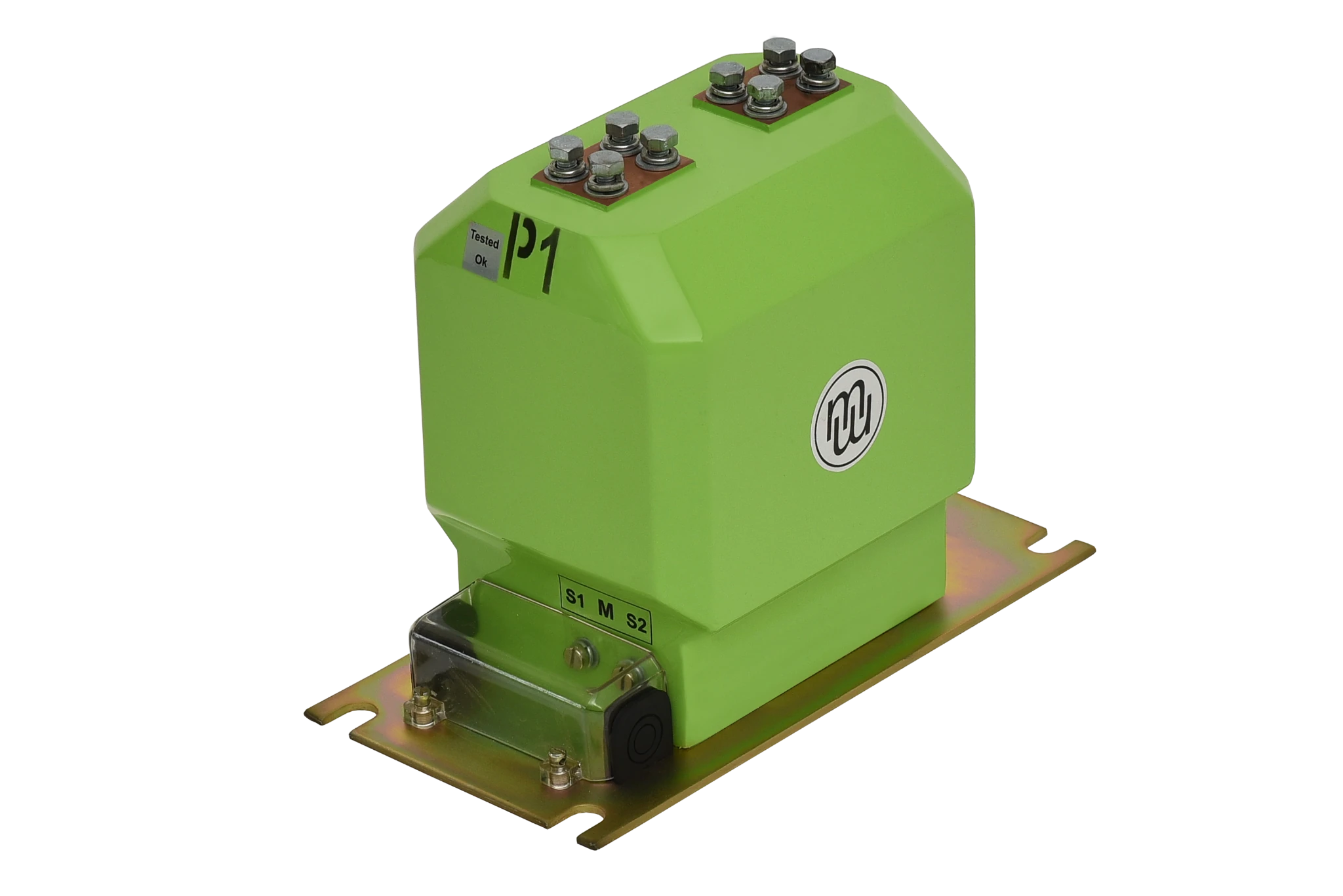

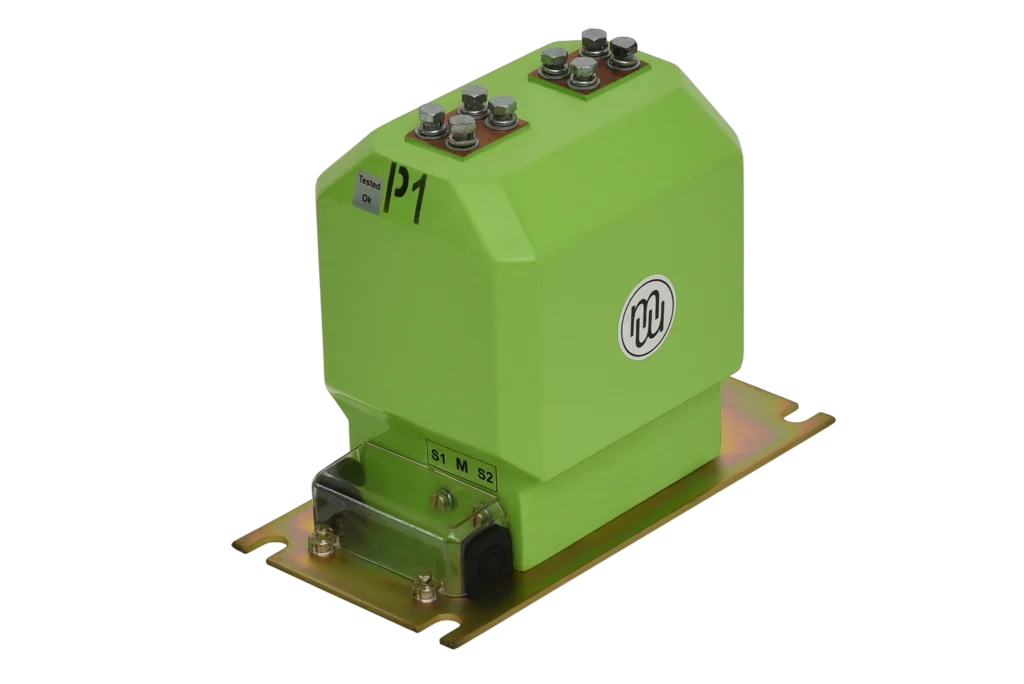

MCT-01 Current Transformer

MCT-01 is a medium voltage current transformer designed for accurate current measurement and protection applications in electrical power systems.

MV Current Transformer-01 Lahore
Request a Quote
Download Datasheet ↓

Technical Data & Diagram

Insulation Level

Frequency

WAPDA spec.

International Spec.

3.6/10/40 KV to 24/50/125 KV

50/60 Hz

P-44:2018

IEC – 61869

Ratio

M Class

P Class

VA

Iₜₕ KA

25/1A to 1000/5A

50:25/1A to 1000:500/5A

0.1 M5 to 1.0 M10

5 P10 to 10 P10

Up-to 40

Up-to 40
Download Technical Datasheet

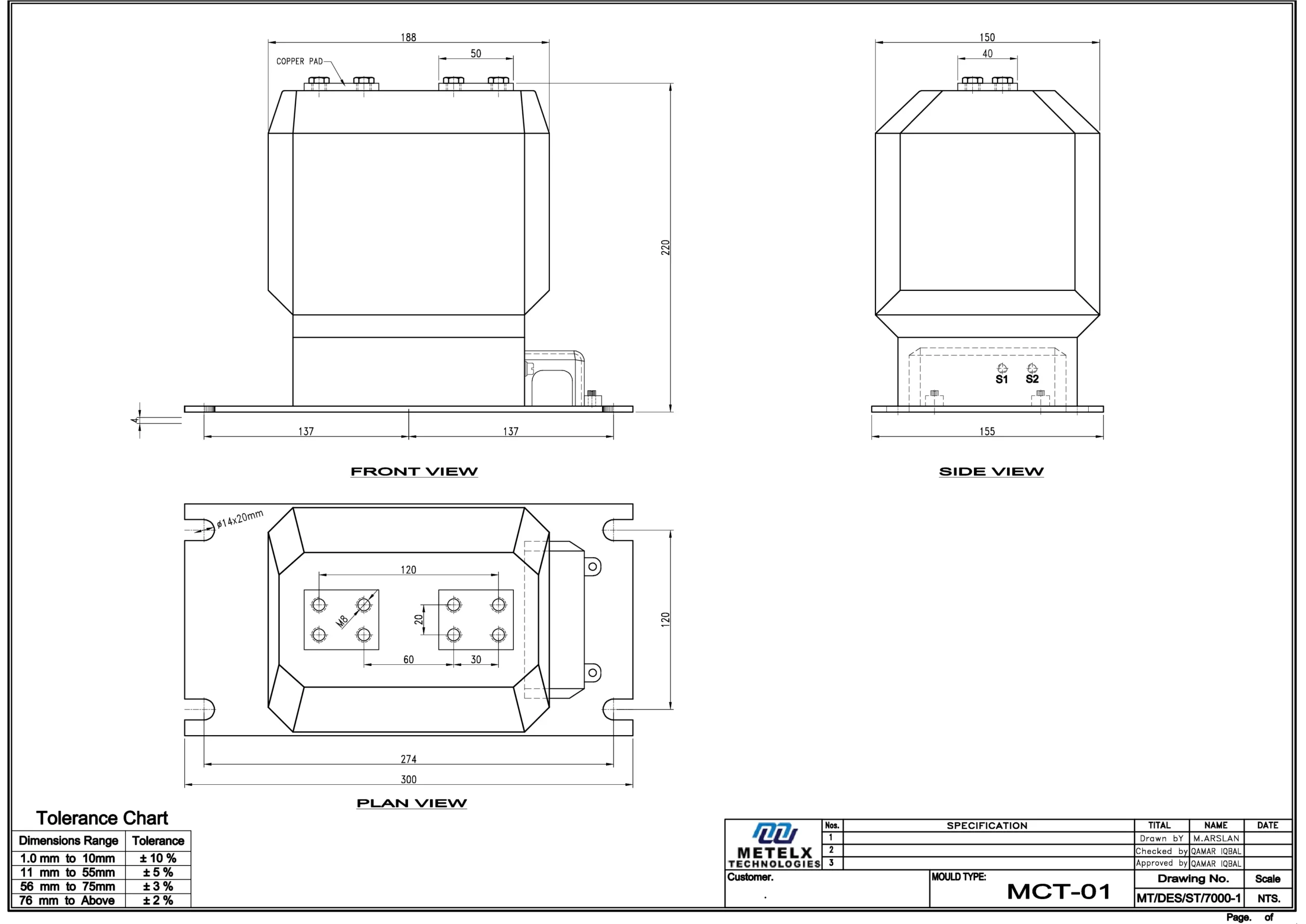

MCT-01 Drawing

MCT-01 Overview

A current transformer (CT) is an instrument transformer that transforms high or large primary currents into a proportional, lower secondary current that meters can safely measure and protection and control systems can use. CTs are commonly applied for electrical metering, protection, and monitoring, allowing measurement equipment and protective relays to work with standardized secondary currents such as 1 A or 5 A, depending on the system and CT specification.

Key Features

  • Accurate Current Transformation
    Specified current transformation and accuracy requirements as required.
  • Metering & Protection
    Application ke according metering/protection configurations.
  • Robust Construction
    Electrical and mechanical requirements ko consider karke designed construction.
  • Short-Time Current Capability
    Rated short-time thermal current requirements ke according designed.
  • Flexible Configuration
    Required ratio, accuracy, burden, and configuration ke according.
  • Application-Specific Design
    Installation aur system requirements ke according dimensions aur mounting arrangements.

Applications

  • Power Distribution
  • Electrical Metering
  • Protection Systems
  • Industrial Power Systems
  • Switchgear Applications
  • Power Monitoring

Manufactured to Defined Technical Requirements

  • IEC
  • BS
  • AS
  • DIN dimensions

Testing & Validation

  • Ratio test
  • Accuracy test
  • Insulation tests
  • Power-frequency withstand
  • Induced voltage test
  • Temperature-rise test
  • Short-time current test
  • Partial discharge

Rated Short-Time Thermal Current — Iₜₕ

Iₜₕ represents the rated short-time thermal current that the current transformer can withstand for the specified duration without unacceptable thermal damage. This parameter matters when selecting a current transformer for systems where short-circuit current levels must be considered.
